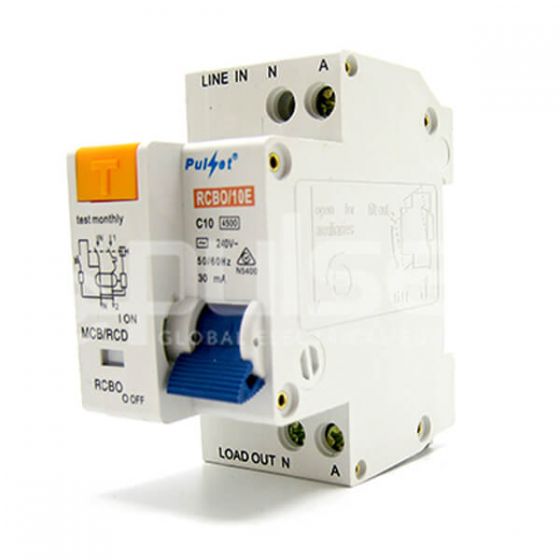

2 Pole MCB/RCD Electronic Combo (RCBO)
Complete din rail mount 2 Pole RCBO, with a trip rate of 30mA and automatic cut off on overload current and short circuit.
Available in 10, 16, 20, 25 & 32Amp.
Split Qty: 6
Carton Qty: 120
Code : 2 Pole 10Amp MCB/RCD Electronic Combo (RCBO) (RCBO/10E) , 2 Pole 16Amp MCB/RCD Electronic Combo (RCBO) (RCBO/16E) , 2 Pole 20Amp MCB/RCD Electronic Combo (RCBO) (RCBO/20E), 2 Pole 25Amp MCB/RCD Electronic Combo (RCBO) (RCBO/25E), 2 Pole 32Amp MCB/RCD Electronic Combo (RCBO) (RCBO/32E)► Built in testing feature. ► Complete din rail mount MCB/RCD combination. ► Designed by electricians for electricians. ► Free tripping mechanism, cannot be held on against a fault.
Pulset’s range of complete din rail mount electronic combinations with a trip rate of 30mA and automatic cut off on overload current and short circuit is used for the protection against electrical leakage.
When a person receives an electric shock as a result of a house wiring becomes faulty, a faulty appliance is turned on or the residual current of the circuit exceeds the fixed value the earth leakage breaker cuts off the power to the casualty in under 0.1 seconds. This automatically protecting personal safety and protecting household equipment from faults.
All Pulset’s electronic combinations conform with the IEC60898, IEC60755, AS/NZ61009.1:1999 and the Australian Standards (Approval no. N17795) and also come with the Pulset life time guarantee
