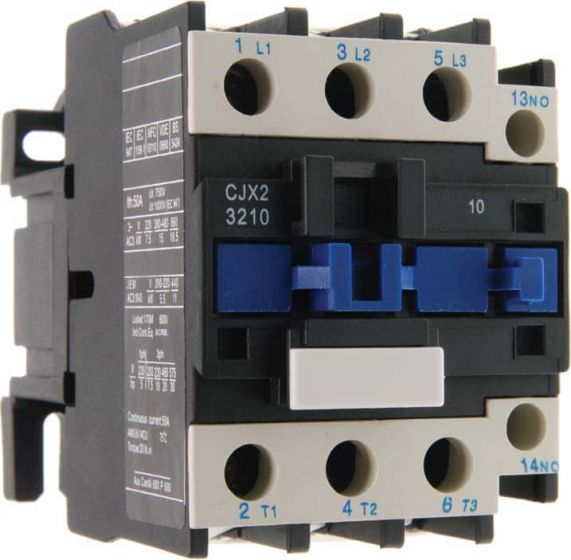

240V / 440 V Contactors 9A - 125A
240V / 440 V Contactors 9A - 125A
660V AC contactors rated up to 95A and 50 or 60Hz. Suitable for making, breaking and frequently starting AC motors.
Combined with the auxiliary contact block, timer delay & machine-interlocking device, it becomes the delay contactor, mechanical interlocking contactor and star-delta starter.
With the thermal relay, it combines into the electromagnetic starter.
Available in 20, 25, 32, 40, 50, 60, 70, 75, 110 &125Amp.
Also available is a CONT/D2508 which has 2 N/0, 2 N/C contactors.
Split Quantity: 1
Carton Quantity:
CONT/D0910, CONT/D1210, CONT/D1801, CONT/D1810, CONT/D2510, CONT/D2508, CONT/D3210, CONT/D3210 - 50
CONT/D4011, CONT/D5011 - 20
CONT/D6511, CONT/D8011, CONT/D9511 - 16 ; CONT/D2501
CONT/D0901, CONT/D1201
240V / 440 V Contactors 9A - 125A are available in following model :
240V Contactor - 20A, 240V Contactor - 25A, 240V Contactor - 32A, 240V Contactor - 32A, 240V Contactor - 40A, 240V Contactor - 50A, 240V Contactor - 60A, 240V Contactor - 70A, 240V Contactor - 75A, 240V Contactor - 110A, 240V Contactor - 125A, Contactor 240V 40A (3NO + 1NC)
AC3 Contactor Rating is shown in the code , For Example : CONT/D0910. The D09 in the code represents AC3 9amps.
For Example CONT/D1210. The D12 in the code represents AC3 12amps.
